Deep Dive: Understanding kube-bind Internals
Note: Just want to get started quickly? Check out our Quick Start Guide which sets up everything automatically with
kubectl bind dev create. This article explains the machinery under the hood—the "Hard Way".
If you’ve ever tried to make one cluster consume resources from another, you’ve probably had to deal with complicated networking setups, VPN tunnels, duplicated Custom Resource Definitions (CRDs), or custom-built controllers to keep everything in sync.
As organizations grow, the need for multi-cluster setups become inevitable, and this comes with its own headache especially when you need to share services or resource between clusters. Doing this in Kubernetes is inherently hard because clusters are isolated by design. They don’t natively “talk” to each other.
This is where kube-bind comes in.
To understand kube-bind, it helps to think about how mobile apps work.
When a developer builds an app, they don’t send the source code directly to every user. Instead, they publish it to an app marketplace like the App Store. Users can then browse, install, and use the app without needing direct access to the developer’s system.
kube-bind works in a similar way.
One Kubernetes cluster can “publish” selected APIs, and another cluster can “install” or bind to them. The consumer cluster doesn’t need full access to the provider cluster, it only interacts with the exported APIs, just like installing an app.
kube-bind provides a Kubernetes-native way to securely export APIs from one cluster and bind to them in another without stitching clusters together through complex networking configurations or manual synchronization.
In this article, we’ll explore what kube-bind is, why it exists, and how to use it step-by-step to share services across Kubernetes clusters.
What Is kube-bind?
kube-bind is an open-source tool that allows you to export Kubernetes APIs from a Service Provider cluster and consume them in a Consumer cluster.
It effectively "projects" an API (like a CRD) from one cluster to another. To the consumer, it feels like the resource is local. They can create a PostgreSQL object in their namespace and interact with it just like any other Kubernetes resource, however, the actual logic and heavy operational workload happens on the provider's side.
graph LR
subgraph Provider Cluster
A[PostgreSQL Controller] --> B[Actual Postgres DB]
C[APIServiceExport]
end
subgraph Consumer Cluster
D[Konnector]
E[Shadow CRD]
end
D <-->|Syncs Resources| C
E -.->|User Creates Resource| D
kube-bindfocuses on service binding. It does not merge or federate control planes. Instead, it allows one cluster to securely consume specific APIs exported by another.
Core Concepts & API Objects
Under the hood, kube-bind uses a set of Custom Resource Definitions (CRDs) to manage the lifecycle of exported services and bindings. Here are the key objects you'll encounter:
APIServiceExport: Represents a specific API (CRD) that the provider wants to export. An export makes the API available to bind.APIServiceExportTemplate: A template used to instantiate theAPIServiceExport. It defines what resources can be exported and carries configuration for the export.ClusterBinding: A resource on the consumer side that represents the connection to a specific provider. It holds the authentication details and endpoint information.APIServiceBinding: A resource on the consumer side that represents a binding to a specific exported API. When created, it triggers the synchronization process.Konnector: The lightweight agent running in the consumer cluster. It watchesAPIServiceBindingresources and handles the actual synchronization of data between the consumer and provider.
The "Hard Way": Manual Setup & Architecture
To really understand how kube-bind works, we're going to set it up manually. This is what the dev create command does automatically, but looking at the individual steps reveals the architecture.
Let's see this in action. We'll simulate both the provider and consumer on your local machine.
Prerequisites
You'll need:
Install kube-bind
The easiest way to install the kube-bind CLI is via krew, the plugin manager for kubectl. Since kube-bind is in its own index, you need to add it first:
kubectl krew index add bind https://github.com/kube-bind/krew-index.git
kubectl krew install bind/bind
You should see output similar to this:
➜ kubectl krew index add bind https://github.com/kube-bind/krew-index.git
WARNING: You have added a new index from "https://github.com/kube-bind/krew-index.git"
The plugins in this index are not audited for security by the Krew maintainers.
Install them at your own risk.
➜ kubectl krew install bind/bind
Updated the local copy of plugin index "bind".
Installing plugin: bind
Installed plugin: bind
\
| Use this plugin:
| kubectl bind
| Documentation:
| https://kube-bind.io/
/
If you don't have krew installed, you can download the binary directly from the releases page.
Step 1: Create the Clusters
We need at least two clusters, but first, we'll start by creating a provider cluster.
Create the provider cluster with port mapping:
cat <<EOF | kind create cluster --name provider --config=-
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
extraPortMappings:
- containerPort: 6443
hostPort: 6443
EOF
Create the consumer cluster:
You can verify that your clusters are ready by checking the nodes:
➜ kubectl get nodes --context kind-provider
NAME STATUS ROLES AGE VERSION
provider-control-plane Ready control-plane 3m58s v1.27.3
➜ kubectl get nodes --context kind-consumer
NAME STATUS ROLES AGE VERSION
consumer-control-plane Ready control-plane 3m16s v1.27.3
Step 2: Set Up the Provider
Switch to the provider context. We need to install the kube-bind backend.
To ensure authentication works correctly and enable cross-cluster connectivity, we need to configure hostname resolution:
Linux/macOS:
Windows:
Add 127.0.0.1 kube-bind-backend.kube-bind.svc to C:\Windows\System32\drivers\etc\hosts.
Now, install the backend using Helm, configuring it to use this domain:
kubectl config use-context kind-provider
# Install the backend using Helm
helm upgrade --install \
--namespace kube-bind \
--create-namespace \
--set image.tag=v0.7.1 \
--set backend.externalAddress=https://provider-control-plane:6443 \
--set backend.tlsExternalServerName=kubernetes.default.svc \
--set backend.oidc.issuerUrl=http://kube-bind-backend.kube-bind.svc:8080/oidc \
--set backend.oidc.callbackUrl=http://kube-bind-backend.kube-bind.svc:8080/api/callback \
kube-bind oci://ghcr.io/kube-bind/charts/backend --version 0.7.1
Note: The OIDC configuration used here (which uses the built-in mock OIDC provider of
kube-bind-backend) is for demonstration purposes only. For a production deployment, you must integrate with a real OIDC provider. See Installation with Helm for production guidelines.Important Configuration Details:
backend.externalAddress=https://provider-control-plane:6443- This is the address the Konnector will use to connect to the provider's API server.backend.tlsExternalServerName=kubernetes.default.svc- This ensures TLS verification succeeds even though we're connecting via a custom hostname.backend.oidc.callbackUrl- Must include thehttp://scheme to ensure proper browser redirects during authentication.
After installing, verify that the backend is running:
You should see something like this:
Since we are running locally in Kind without an Ingress, we need to port-forward the backend service.
Open a new terminal window and run:

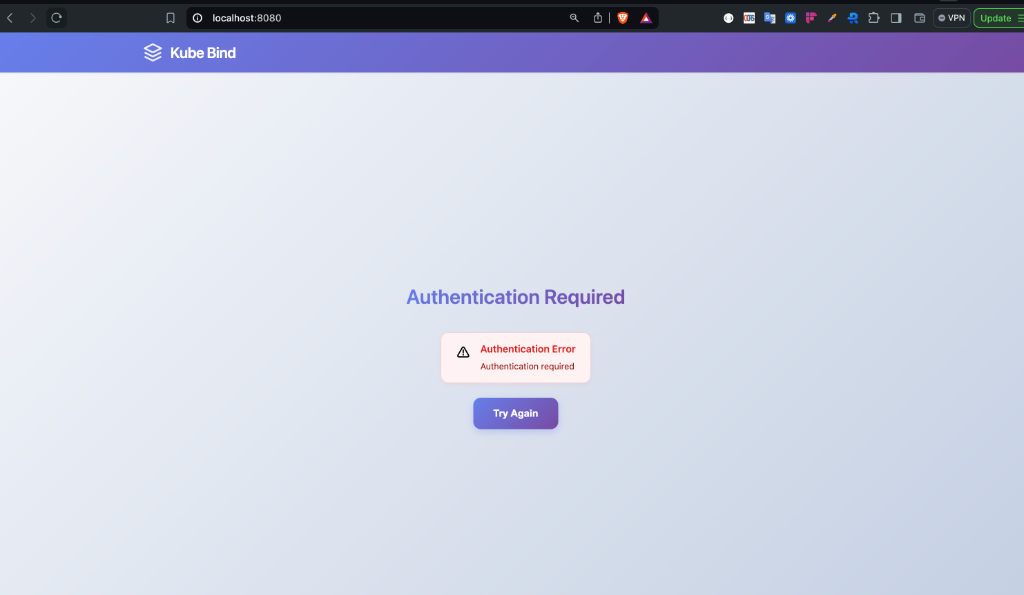

If you visit http://kube-bind-backend.kube-bind.svc:8080 in your browser, you'll see this screen. This is normal and confirms the backend is running!
Step 3: Exporting an API Service
Now that the backend is running, we can export an API. We'll use the Cowboy CRD included in the kube-bind repository as our example.
First, apply the CRD to the provider cluster:
kubectl apply -f https://raw.githubusercontent.com/kube-bind/kube-bind/main/deploy/examples/crd-cowboys.yaml
Verify that the CRD is installed:
You should see cowboys.wildwest.dev in the list:
NAME CREATED AT
apiserviceexports.kube-bind.io 2026-02-14T13:04:56Z
...
cowboys.wildwest.dev 2026-02-14T13:57:13Z
Now, we need to export this service so consumers can find it. We do this by creating an APIServiceExportTemplate. This tells the backend to list "Cowboys" in its service catalog.
kubectl apply -f https://raw.githubusercontent.com/kube-bind/kube-bind/main/deploy/examples/template-cowboys.yaml
Verify that the template is created:
Output:
The service is now exported!
Step 4: Bind the Consumer
Switch to the consumer cluster.
Run the login command to authenticate with the provider:
You should see output similar to:
Connecting to kube-bind server http://kube-bind-backend.kube-bind.svc:8080...
Started local callback server at http://127.0.0.1:64184/callback
Opening browser for authentication...
🔑 Successfully authenticated to kube-bind-backend.kube-bind.svc:8080
Configuration saved to: /Users/username/.kube-bind/config
Now run the bind command:

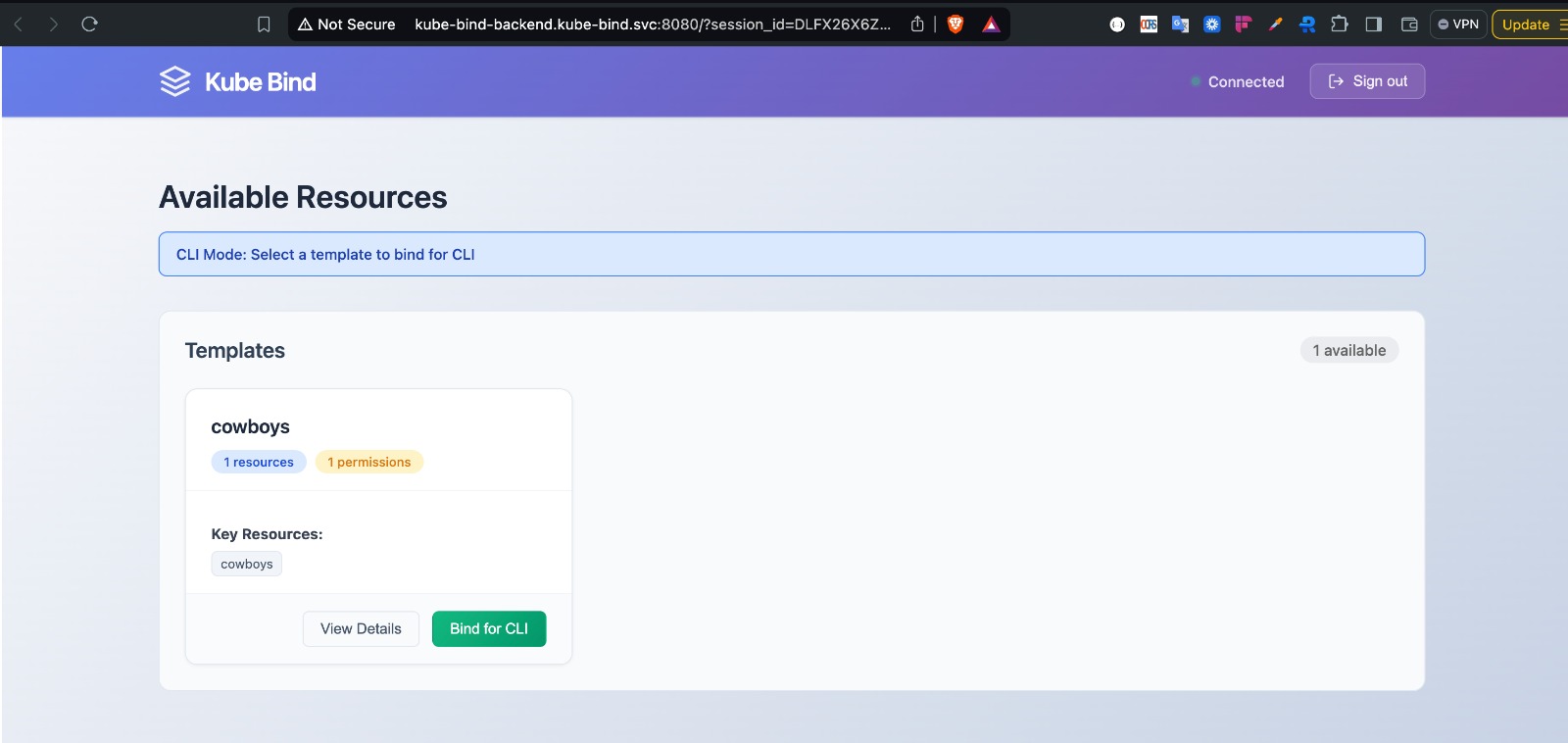

This will open your browser showing the available services in the Provider's template catalog. Amongst them, you'll see the Cowboys template that we exported earlier.

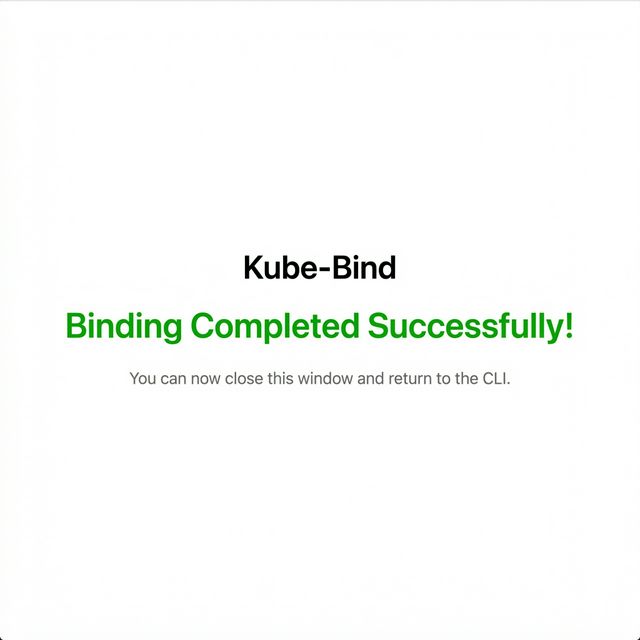

Click "Bind for CLI" to proceed. After clicking, your browser will show a success message:
Meanwhile, back in your terminal, you'll see the CLI deploying the Konnector:
🌐 Opening kube-bind UI in your browser...
Browser opened successfully
Waiting for binding completion from UI...
(Press Ctrl+C to cancel)
Binding completed successfully!
Created kube-bind namespace.
🔒 Created secret kube-bind/kubeconfig-9lbzx for host https://provider-control-plane:6443, namespace kube-bind-enkvby5uzkct
🚀 Deploying konnector v0.7.1 to namespace kube-bind.
Waiting for the konnector to be ready.................
✅ Created APIServiceBinding cowboys for 1 resources
Created 1 APIServiceBinding(s):
- cowboys
Resources bound successfully!
Behind the scenes, the CLI created a kube-bind namespace, an APIServiceBinding, deploys the konnector and creates some other resource in the consumer cluster. The APIServiceBinding resource tells the Konnector which services to sync from the provider.
Check available namespaces
You should see the kube-bind namespace:
NAME STATUS AGE
default Active 6h6m
kube-bind Active 92s
kube-node-lease Active 6h6m
kube-public Active 6h6m
kube-system Active 6h6m
local-path-storage Active 6h6m
Check the Konnector pods:
Output:
We can see the konnector pods running in the kube-bind namespace.
NAME READY STATUS RESTARTS AGE
konnector-547ff86976-5rmh8 1/1 Running 0 98s
konnector-547ff86976-xkcdm 1/1 Running 0 98s
Step 5: Verify and Use
After the binding completes, several CRDs will be installed in your consumer cluster. Let's verify:
You should see the kube-bind infrastructure CRDs along with the Cowboys CRD:
NAME CREATED AT
apiservicebindingbundles.kube-bind.io 2026-02-14T23:37:29Z
apiservicebindings.kube-bind.io 2026-02-14T23:37:29Z
cowboys.wildwest.dev 2026-02-14T23:37:37Z
The cowboys.wildwest.dev CRD is now available locally! The other CRDs are part of the kube-bind infrastructure that manages the binding lifecycle.
Check that the Cowboy CRD is available:
Now, you can create a Cowboy resource directly in your consumer cluster. The magic is that this resource will be managed by the provider!
kubectl apply -f - <<EOF
apiVersion: wildwest.dev/v1alpha1
kind: Cowboy
metadata:
name: billy-the-kid
namespace: default
spec:
intent: "Ride the range and protect the cattle"
EOF
Verify it exists:
Output:
The resource is created locally, but managed remotely!
Real-World Use Cases
- SaaS Platforms: Software vendors can deliver their application into customer clusters without requiring complex installs. Customers get a native CRD, vendors manage the complexity remotely.
- Centralized Platform Teams: Offer "Database-as-a-Service" or "AI-Model-as-a-Service" to internal dev teams from a central management cluster. The dev teams just see a
PostgresorModelresource in their namespace. - Hybrid Cloud: Keep sensitive data (like a database) in a secure on-prem cluster while allowing cloud-based clusters to interact with it via Kubernetes APIs.
kube-bindhandles the secure connection.
See It In Action
Check out our integration guides to see how kube-bind works with popular projects:
- Crossplane: Manage cloud resources like AWS S3 or GCP CloudSQL as a service.
- Kro: The easiest way to create and export custom APIs.
- CloudNativePG: Database-as-a-Service on Kubernetes.
- cert-manager: Certificate management as a service.
Recap
kube-bind solves the multi-cluster service sharing problem by projecting APIs rather than moving infrastructure. It keeps the consumer cluster lightweight while giving platform teams full control over the service lifecycle.
